FEEDERS/STORAGE

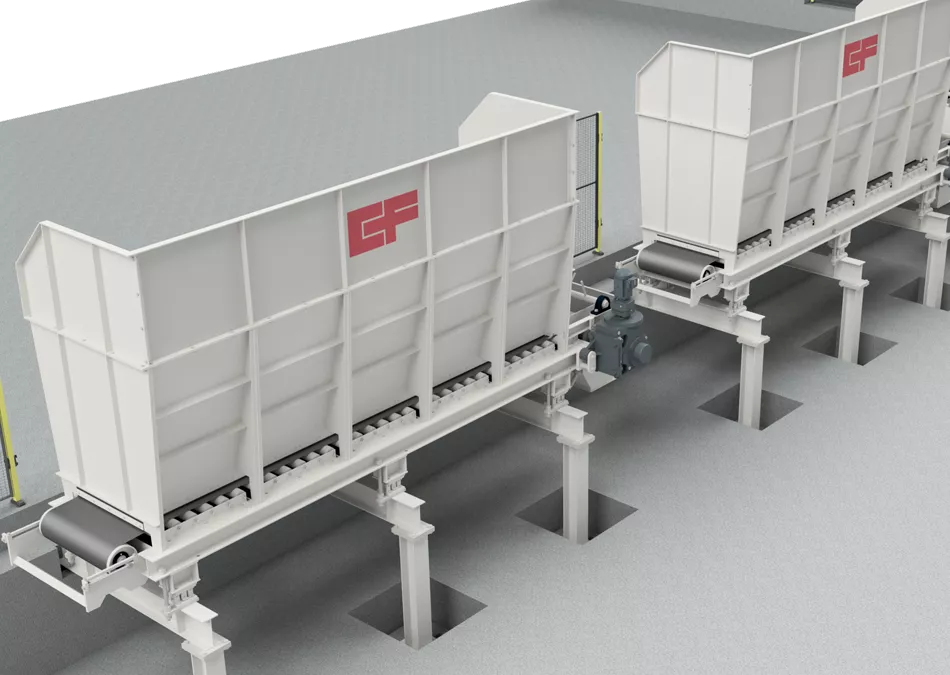

Box Feeders and Belt Feeders
- Accepts and delivers almost any type of raw material from the quarry or stockpile. Electronic variable speed drive feeds at a controlled rate to the next stage of manufacture.
- Suitable as buffer storage of pre-ground material prior to extrusion.
- Widths from 1000mm - 1800mm and lengths between 2.9 - 7.5 m centres.
- Available steel slat bottoms or rubber belt for fine dry materials with scraper
- Easily replaceable bolt-on drive sprocket teeth are standard and slats can be fitted with up to 3 intermediate support rollers on heavy-duty applications where shock loading is anticipated.
View Products
FEEDERS/STORAGE
Screen Feeder
- Feeders with either 1500mm or 1900mm diameter drums
- Ideal for mixing and homogenising prepared material
- Material extruded or expressed through perforated side plates
- V.S Drive option through a heavy-duty gearbox or hydraulic drive
View Products
FEEDERS/STORAGE
Even Feeder
- Multi-worm feeders for even feed of dry ground or plastic clay plus various other materials.
- Ideal for mixing and homogenising prepared material
View Products
